Astronomical Research Observatory

The Meade 16" Optical Tube Assembly has been de-commissioned



  16 inch robotic telescope

Astronomical Research Institute

Paramount ME - Meade 16" OTA - Installed October 2003

The Astronomical Research Observatory (ARO) was constructed for the purpose of operating a sky survey telescope for NEO follow-up, asteroid and supernova search.  This instrument is a Software Bisque Paramount with a Meade 16"optical tube assembly.  The CCD camera is a Santa Barbara Instruments Group STL-1001E with 24 micron pixels and a 1024x1024 array.  The telescope and CCD camera are controlled using Software Bisque software including "The Sky6", CCD-Soft, Orchestrate, and T-Point.

Image scale for the Paramount - Meade 16" is 1.36 arc/sec per pixel at f/10 with a field of view that is 25.9 x 25.9 arc minutes.  Focal length is 4000mm at f/10.   Limiting magnitude with this setup for a 60 sec exposure is 18.54 with a 90% probability.

The retractable roof design suited our current needs better than a dome for full access to the sky without dome rotation problems.  In addition, it was more economical allowing us to place our funds into telescopes and CCD imaging devices rather than buildings to house our equipment.    The Paramount ME-  Meade 16 inch telescope is de-commissioned and has been replaced by a 24 inch (0.61m) telescope will continue to operate in one observatory and a 0.81 meter (32 inch) fully robotic telescope occupies the space in the opposing observatory.

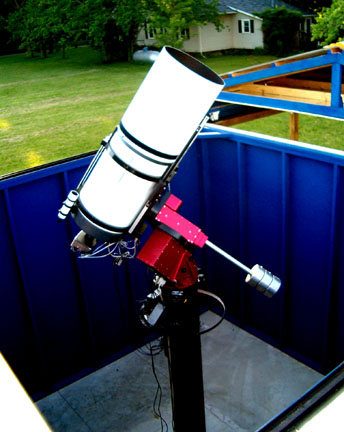

Meade 16" telescope on the SB Paramount

16 inch meade telescope on a Paramount ME

16 inch Paramount- Meade in the Astronomical Research Observatory
